EUROSEAM™ METAL CLADDING

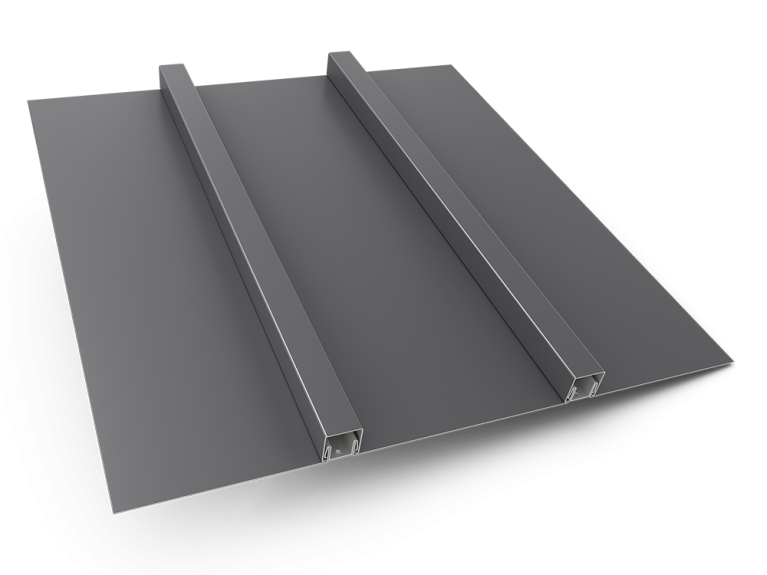

Batten Cap™
Traditional Board & Batten Look
Installed over a solid substrate, purlins, or cavity battens
For the use with all material types
Ability to taper for complex projects
For the use of Wall Cladding and Roofing
Installed over a solid substrate
Installed Vertically, Horizontally, or Diamond Pattern
Ability to curve, taper, and meet job-specific detailing
For the use of all material types
EUROSEAM™ METAL CLADDING

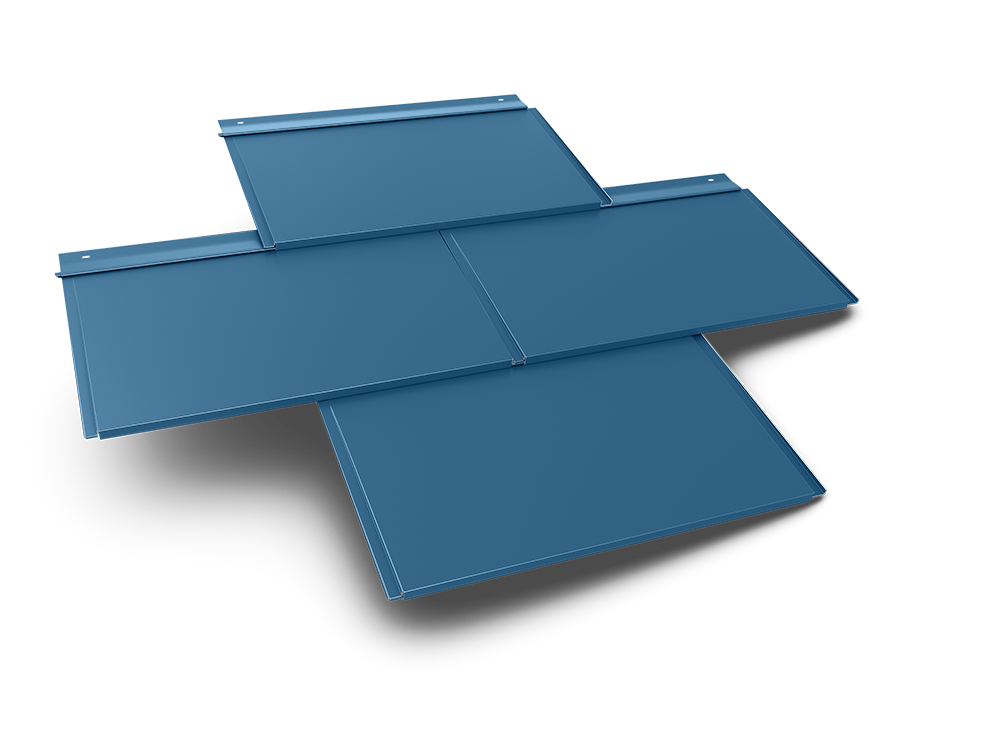

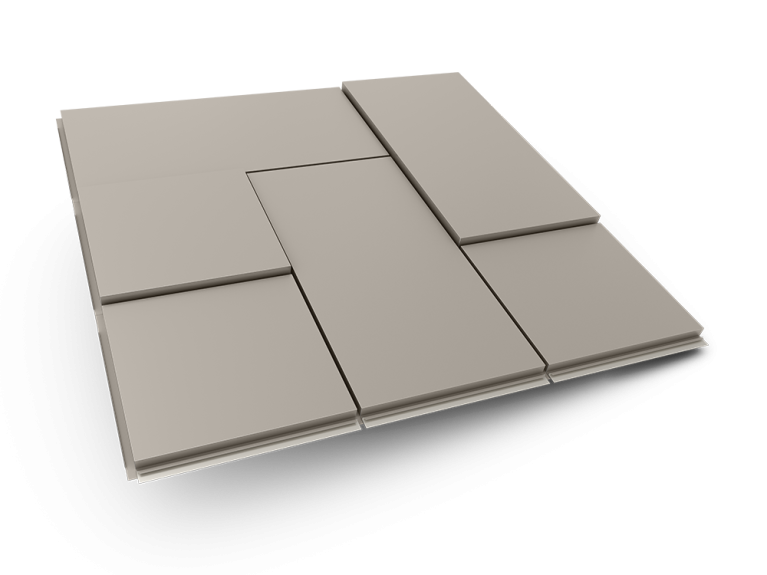

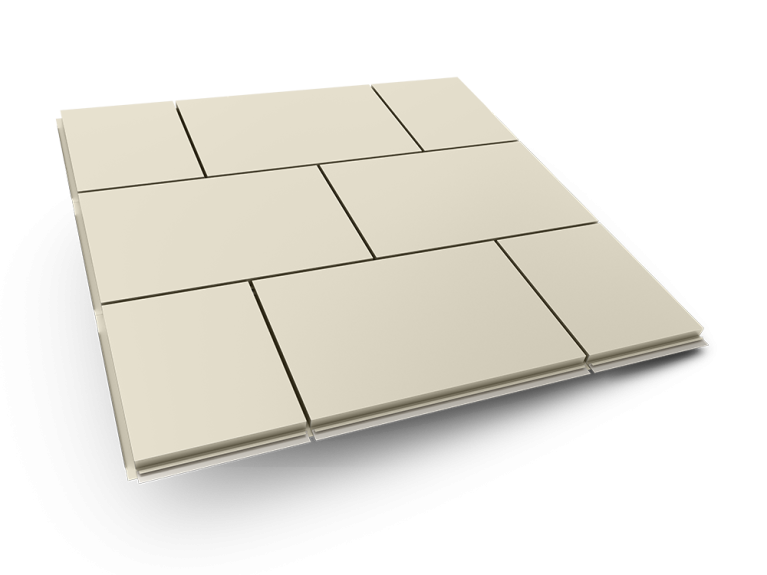

Azoda™ Flat Lock Metal Cladding

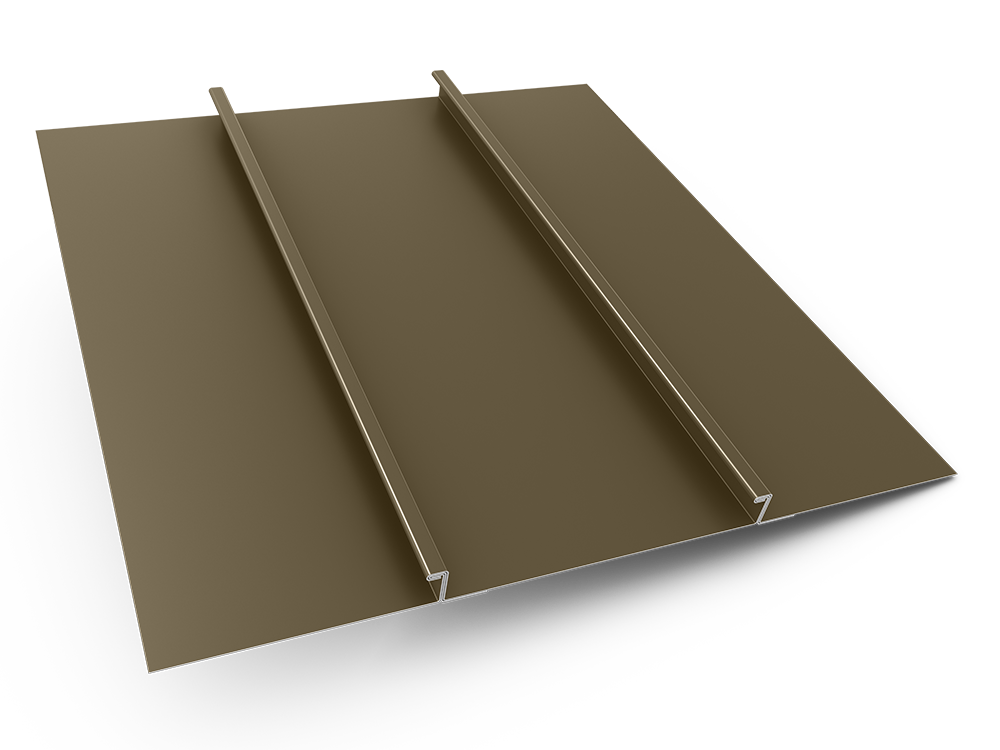

EuroSeam™ Standing Angle Seam Metal Cladding is available in a range of premium materials, formed from:
Pre-Painted Steel: 0.55 – 0.75 BMT (e.g., Colorsteel, ColorCote, Linked Premium Metals)
Copper: 0.55 – 0.90 BMT
Aluminum: 0.80 – 0.90 BMT, pre-painted or plain (e.g., Euramax, Alumiguard, Altimate)
Zinc: 0.70 – 1.00 mm (e.g., VMZINC and comparable systems)
EuroSeam™ is offered in two rib heights: 25mm and 38mm, both maintaining a standard pan width of 490mm overall. The 25mm rib is suitable for both roofing and wall cladding applications, while the 38mm rib offers greater structural depth and aesthetic impact, particularly in high-exposure zones or architectural highlights.
EuroSeam™ can also be custom-formed to suit tapered, curved, or convex design requirements. The pan width may be adjusted to complement the geometry of the building envelope, enabling symmetry and visual balance across complex elevations.
The system is mechanically fixed over a minimum 15mm stress-grade 11 plywood substrate with support framing at 800mm centres, or alternatively, 17mm plywood at 900mm centres.
Linked Group supplies the complete EuroSeam™ system componentry, including:
Custom-engineered expansion and fixed clips to suit both rib heights
Compatible and compliant fixings
EuroSeamVent™ ventilation strips, which are installed vertically within the pan to create a concealed airflow pathway. This design assists in passive ventilation while reducing the appearance of oil-canning for a more refined façade.
EuroSeam™ Standing Angle Seam & Double Lock System: Traditional Tray
EuroSeam Float™: Direct Fixed Purlin or Cavity
Introducing EuroSeam Float: Your Premier Tray Roofing and Cladding Solution
The EuroSeam Float™ system revolutionizes roofing and cladding with its innovative design, installed over a drained cavity or purlin system. Featuring a 3D meshed underlay, EuroSeam Float™ not only provides essential support but also promotes effective ventilation for the wall or roof cavity, enhancing energy efficiency and durability.
Paired with the EuroSeam pocket™ flashing systems, this advanced solution delivers luxurious high-end finishes without the need for a solid substrate. Available in standard pan sizes of 364mm or 386mm, EuroSeam Float™ can also be customized to fit your unique project requirements.
Elevate your architectural designs with EuroSeam Float™, where quality, performance, and aesthetic appeal seamlessly come together.
Introducing PureBatten, the ultimate solution for modern architectural aesthetics and performance. Designed to be installed over a drained cavity system, the PureBatten Cladding System enhances your building while ensuring optimal moisture management and durability.
Key Features:
Sleek, Concealed Finish: The innovative flashing design allows for easy sliding into pocket soakers, creating a seamless and refined appearance. PureBatten eliminates visible fasteners, offering a clean, modern look that enhances the overall architecture.
Compliance and Quality: Constructed in accordance with the current New Zealand Building Code, PureBatten guarantees safety and performance across various environments. Enjoy peace of mind knowing your cladding meets all regulatory standards.
Material Options: Available in high-quality Colorsteel and lightweight aluminum, PureBatten is built to withstand environmental elements while maintaining its aesthetic integrity. Our materials are engineered for long-lasting durability and resistance to corrosion.
Effective Cover of 370mm: Featuring a generous effective cover of 370mm, PureBatten provides excellent coverage, contributing significantly to thermal insulation and weather protection, ensuring comfort in any climate.
Versatile Applications: Ideal for residential, commercial, and industrial projects, PureBatten adds a touch of elegance and sophistication to any design, making it a perfect choice for a variety of building styles.
Elevate your architectural vision with the PureBatten Cladding System—a perfect blend of style, function, and compliance for today's discerning builders and homeowners.
PURECLAD™: Cladding System
Board & Batten look
EuroSeamVent™
The Convex Ventilation is an innovative solution designed to enhance the performance and longevity of standing seam profiles. This product is utilized beneath standing seam roofing to create a convex profile, promoting essential ventilation that effectively reduces costs compared to traditional drainage mat systems.
Key Features:
Enhanced Ventilation: Provides significant airflow beneath the roofing system, helping to prevent moisture buildup and prolonging the lifespan of the roof.
Cost-Effective: Offers a more economical alternative to drainage mat systems while maintaining high performance.
Easy Installation: Can be securely attached using staples or glue, depending on the specific application needs, allowing for a straightforward installation process.
Custom Bundles: Available in custom orders to meet specific project requirements, ensuring that each job is suitably equipped.
The Convex Ventilation not only improves ventilation but also contributes to a clean finish for tray systems. This makes it an ideal choice for roofing & cladding projects seeking efficiency, durability, and aesthetic appeal. Choose the EuroSeamVent for an effective solution that supports optimal roof performance and enhances your construction outcomes.

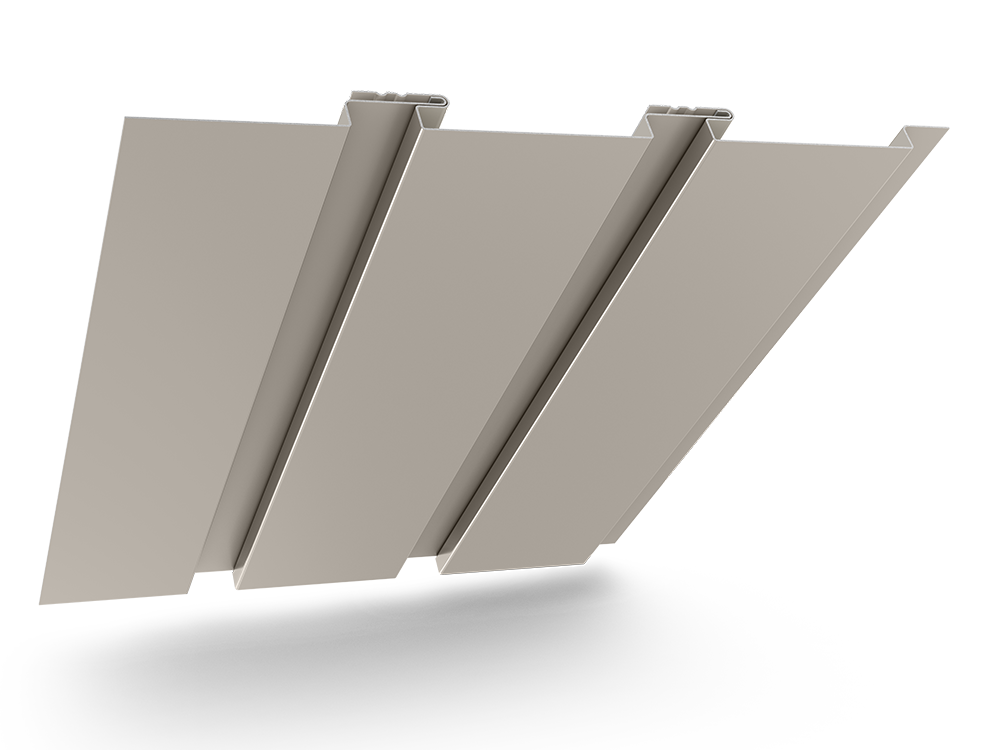

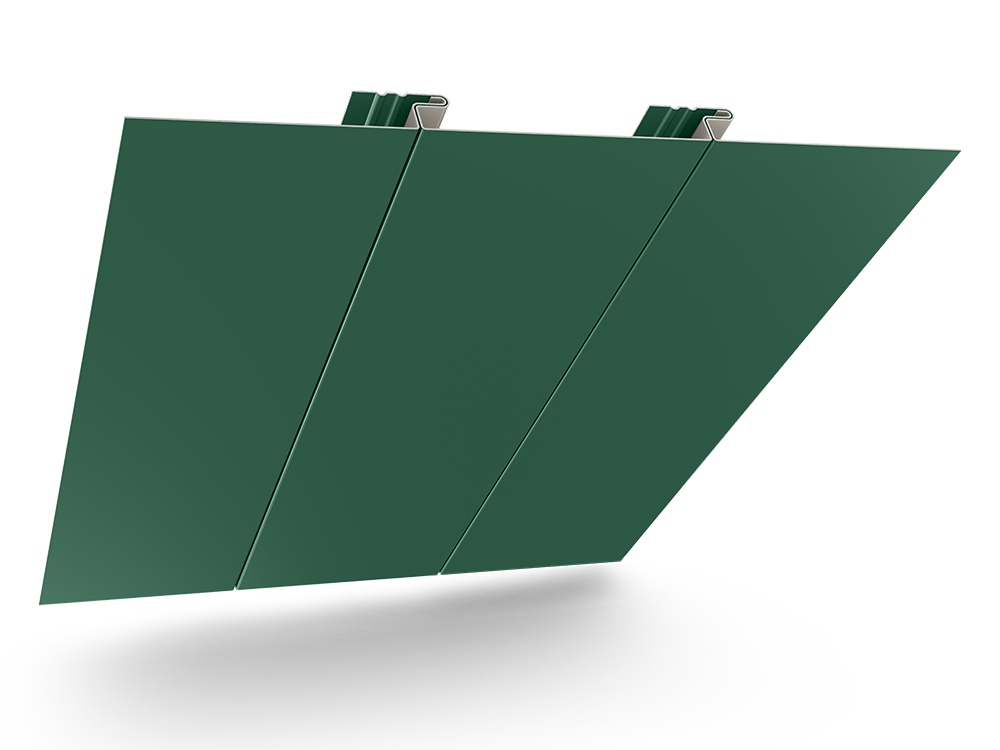

Cassette Panel™: Wall Cladding & Internal Application
Width and dimensions custom-formed for project requirements
Installed directly over a drained cavity system
153mm | 253mm Pan size as standard
14mm Height as standard
Negative detail join | 12mm as standard
Available in all material types
At Linked Group, we take pride in collaborating with our network of licensed installers who play a crucial role in delivering our top-quality roofing and cladding solutions. These trusted partners are seasoned professionals, meticulously selected for their expertise in installing our premium products to the highest standards. With their extensive industry knowledge and unwavering dedication to excellence, you can trust that your project will be executed with precision and meticulous attention to detail. Together, we strive to create exceptional outcomes that meet the unique needs of every client
